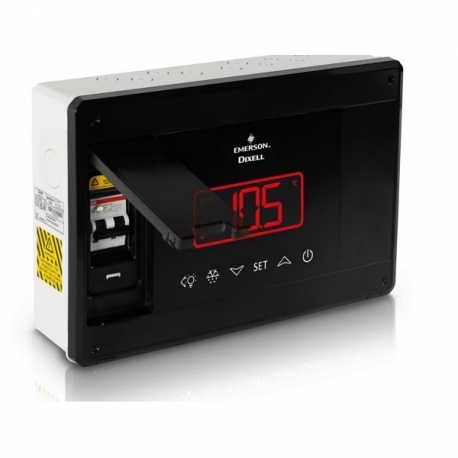

CONTROLLER 230VAC, 4*NTC/PT1000, 2*20A+2*16A +2*8A, RS485 - X0RTFABAE500-S0
| Tensiune alimentare: 230 V |
| Producător: Dixell |
Product description:
The XER is a microprocessor-based controller suitable for cold room applications on medium or low temperature ventilated refrigeration units.
The XER260P-5N1040 has front door (fuse not included).
Power supply: 230VAC;
Degree of Protection: EN 60529 IP54/65 (whole controller) IP20 (electronics only);
Dimensions: Front 340x226 mm; case depth 98 mm;
Inputs: Up to 4 NTC or PT1000 (configurable) Up to 2 voltage free contacts;
Analogue Outputs:
• 1Ao: Frequency output: Supply max voltage=12Vdc; Max supply current=2mA; duty cycle 50%; 0 to 166 Hz; Accuracy: ±1Hz compared to the full scale; PWM: Supply max voltage=12Vdc; Max supply current=2mA; 0 to 4kHz;
• 2Ao: 4-20mA; 0-10Vdc; Max supply current=5mA; Accuracy: ±1% compared to the full scale.
Technical documentation:Apasă aici
