CONTROLER CENTRALA 24V 15 RELEE 8(3)A 4*4-20mA;cod nou: X0SGHPBMZ305-S00 / COMPESSOR RACK 24V 15 RELAYS 8(3)A 4*4-20mA
| Tensiune alimentare: 24 V |
| Producător: Dixell |
Product description:

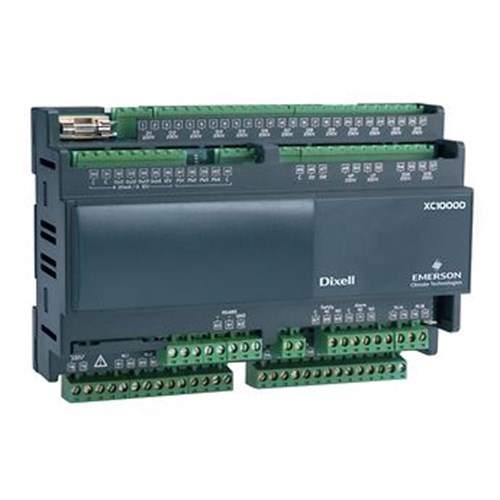

The XC1015D-1C01F is a controller designed to control compressors and fans at the same time, with 15 relays per output.
Compressors can be simple, multi-stage or condensing capacity.
This type of controller can control the compressor/condenser fan equipped with frequency converter.
The VGC810-1P000-NEW keypad is used to program the controller.
Power supply: 24VAC/DC±10%;
Housing: 175x133mm, depth 60mm;
Resolution: 1/100 Bar for suction;
Mounting: DIN rail;
Number of configurable relays:
XC1015: 15(max);
XC1011D: 11;
XC1008D: 8;
Compressors type: simple, multi-stage;
Refrigerant type: R22, R134a, R404a, R507;
Operating temperature: 0-60°C;
Storage temperature: -30÷85°C.
Technical documentation: Click here
