CONTROLER CENTRALA 24V 8 RELEE 8(3)A 4*4-20mA cod nou: X0SGDDBMZ305-S00

This combination does not exist.

Tensiune alimentare: 24 V

Producător: Dixell

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Product description:

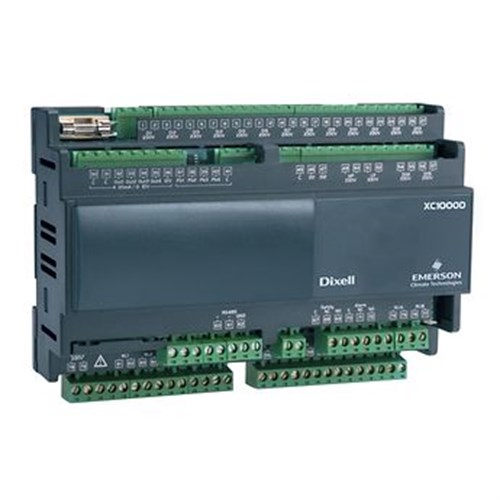

The XC1008D-1C01F is a controller designed to control compressors and fans at the same time, with 8 relays per output.

Compressors can be simple, multi-stage or condensing capacity.

This type of controller can control the compressor/condenser fan equipped with frequency converter.

The VGC810-1P000-NEW keypad is used to program the controller.

Power supply: 24VAC/DC±10%;

Housing: 175x133mm, depth 60mm;

Resolution: 1/100 Bar for suction;

Mounting: DIN rail;

Number of configurable relays:

Compressors type: simple, multi-stage;

Refrigerant type: R22, R134a, R404a, R507;

Operating temperature: 0-60°C;

Storage temperature: -30÷85°C.

Technical documentation: Click here
