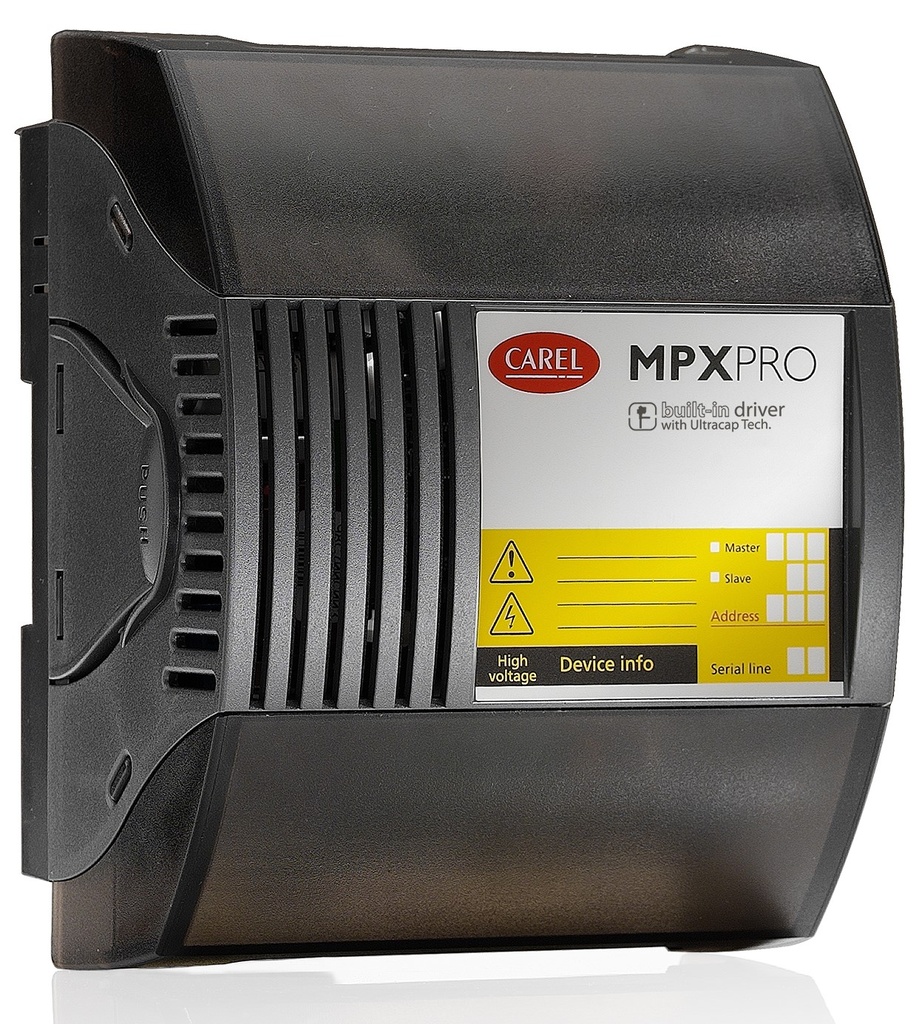

MPXPRO PWM CONTROLLER WITH HORIZONTAL CONNECTORS
Internal Reference: MX30M24HR0
Producător:
Carel
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Product description:
MPXPRO PWM controller with horizontal connectors.
MPXPRO is an advanced Retail Sistema solution from CAREL for complete and integrated control of integrated refrigeration units. It delivers high performance and flexibility, offers optimal energy saving potential and is particularly easy to use and install.
Number of analogue inputs (max.):7;
Number of digital inputs (max.): 5;
Number of analogue outputs: 3;
Number of digital outputs: 5;
Expansion valve type: PWM, EXV (optional);
Number of controlled valves: 1;
Additional features: buzzer;
Connector type: horizontal;
Display model: IR00UGC300 with keyboard, IR00XGC300.
Technical documentation: Click here
